OFMER – Spiral Machine CAL35 [Made in Italy]

OFMER - Spiral Machine CAL35 [Made in Italy]
OFMER - Spiral Machine CAL35 [Made in Italy]
OFMER - Spiral Machine CAL35 [Made in Italy]
OFMER - Spiral Machine CAL35 [Made in Italy]
OFMER - Spiral Machine CAL35 [Made in Italy]
OFMER - Spiral Machine CAL35 [Made in Italy]

View Brochure

Specifications

Make

OFMER

Model

PS16 A/C

Description

Designed to meet the needs of creating circles, spirals, and arches from large diameter designed to meet the needs of creating circles, spirals, and arches from large diameter bars, the spiral machine is versatile and easy to use.

Ideal for medium and large construction sites, the spiral machine also offers excellent performance for less structural works.

Selectable two-speed motor, it ensures efficiency and safety in every application.

Key features:

  • Wide working capacity: the CAL35 is capable of calendering bars with diameters from 6 mm to 32 mm, offering the flexibility needed for a wide range of projects.

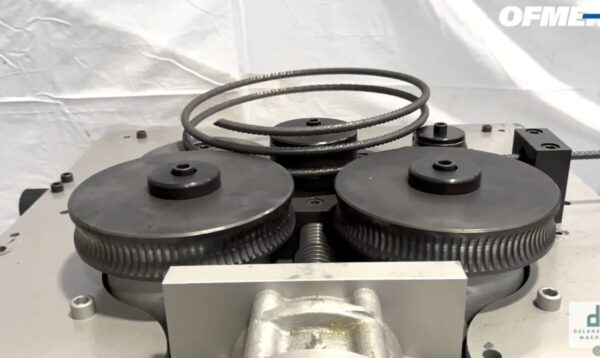

  • Versatility: thanks to the possibility of executing circles with unlimited bending radii and spirals with adjustable diameters from a minimum of 15 cm to a maximum of more than 200 cm, the CAL35 is easily adapted to different work needs.
  • Power/speed ratio: the two-speed motor provides the speed needed to bend small diameters and the power for larger ones, ensuring optimal performance in every situation.

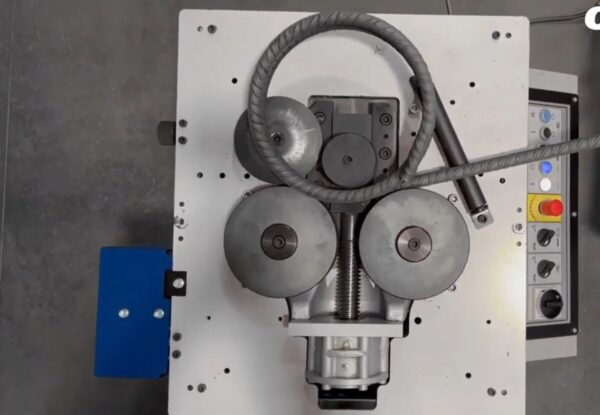

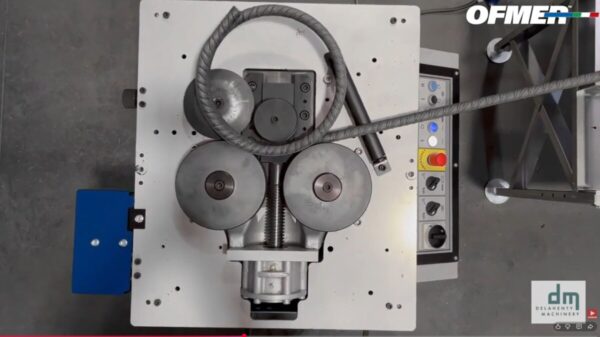

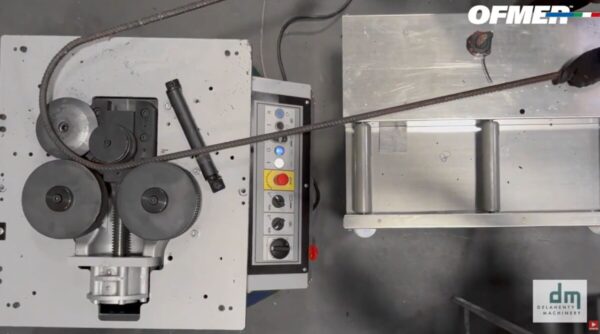

  • Robustness and safety: the work table is made up of three rollers in a special heat-treated alloy, ensuring long durability and a secure grip on the bar during work.
  • Flexibility of use: the CAL35 can be ordered with horizontal or vertical production, to adapt to the specific needs of each worksite.

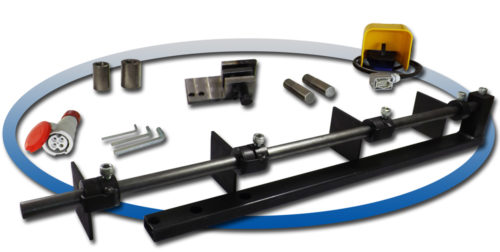

Equipment, technical specifications and accessories:

  • Allen wrench set, useful for ordinary maintenance.
  • Double electric pedalboard, which allows the activation of the drag rollers in a clockwise (yellow pedalboard) and counterclockwise (blue pedalboard) direction.
  • Steering wheel plug, to guarantee electrical connection.
  • Set of wheels for moving the machine.
  • Two emergency buttons, to instantly stop the machine in case of emergency. They are placed on two opposite sides of the machine.
  • Possibility of working bars with diameters of up to 6mm thanks to the small diameter kit accessory, easily installed and removable according to the customer’s needs.
MODELOPERATIONS

/MINUTE

HP/ KW85 KG/ MM²

MIN

85 KG/ MM²

MIN

CAL35 1 speed115/3,76 mm32 mm
CAL35 2 Speed226/4,56 mm32 mm
