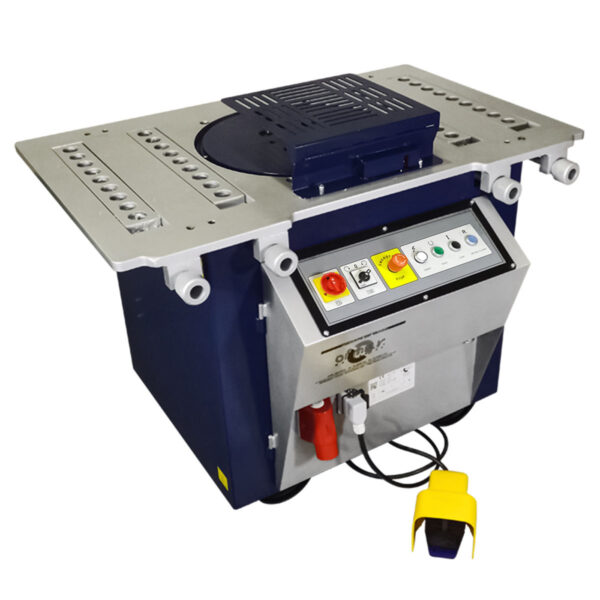

OFMER – P56 Rebar Bending Machine [Italian Made]

OFMER - P56 Rebar Bending Machine [Italian Made]

View Brochure

Description

Our P56 is a high-caliber bender, perfect for the most demanding jobs. With the ability to bend rebar up to a maximum diameter of 46 mm, this machine is ideal for job sites with heavy workloads that require quality, reliability, and durability.
Capable of processing up to 47 tons of steel per day, the P56 ensures continuous operation without interruptions or downtime.
Suitable for all markets, our benders comply with international quality certifications, ensuring that every project meets the highest standards.
  • Made in Italy.
  • Machine Size 130cm x 95cm x 89cm
  • Machine Weight 710kg
  • Drive Motor 7.5hp/5.5kw
  • Available in 3 phase 415v 50hz
  • Bending Capacity R= 65kg/mm²
    • Single Bar ∅46mm Diameter
    • Two Bars ∅36mm Diameter
    • Three Bars ∅30mm Diameter
  • Bending Capacity R= 85kg/mm²
    • Single Bar 42mm Diameter
    • Two Bars 34mm Diameter
    • Three Bars ∅26mm Diameter
  • One hardened square pin
  • One hardened Stirrup bending pin
  • Four hardened bush holding pins
  • One Checking Block
  • 1 Foot Pedal
  • 7 Bushes 60, 70, 80, 95, 120, 150, 175mm Diameter
  • 1 Set of Allen Keys

MODEL

CUTS PERMINUTEHP/ KW65 KG/ MM²
MM		85 KG/ MM²
MM

P34

113/2,21Ø 30 mm
2Ø 22 mm
3Ø 18 mm		1Ø 28 mm
2Ø 20 mm
3Ø 16 mm

P38

94/31Ø 34 mm
2Ø 26 mm
3Ø 20 mm		1Ø 32 mm
2Ø 24 mm
3Ø 18 mm
P4464/31Ø 38 mm
2Ø 30 mm
3Ø 24 mm

1Ø 36 mm
2Ø 28 mm
3Ø 22 mm

P54

65,5/41Ø 44 mm
2Ø 34 mm
3Ø 28 mm		1Ø 40 mm
2Ø 32 mm
3Ø 24 mm
P5657,5/5,51Ø 46 mm
2Ø 36 mm
3Ø 30 mm

1Ø 42 mm
2Ø 34 mm
3Ø 26 mm

P7457,5/5,51Ø 60 mm
2Ø 42 mm
3Ø 34 mm

1Ø 50 mm
2Ø 36 mm
3Ø 30 mm
