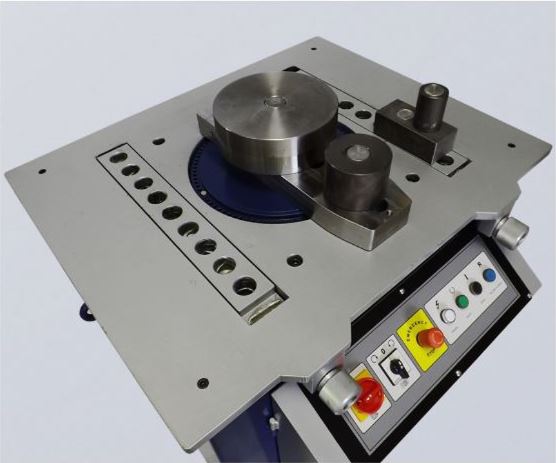

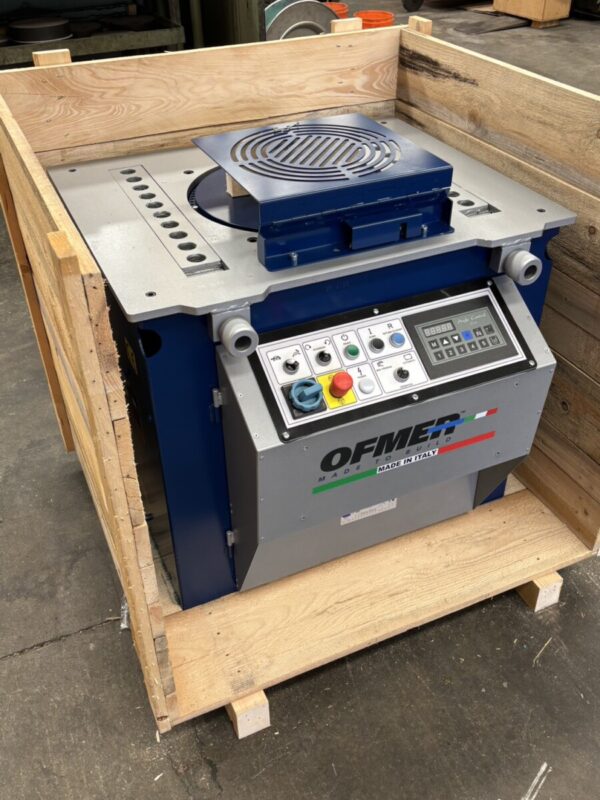

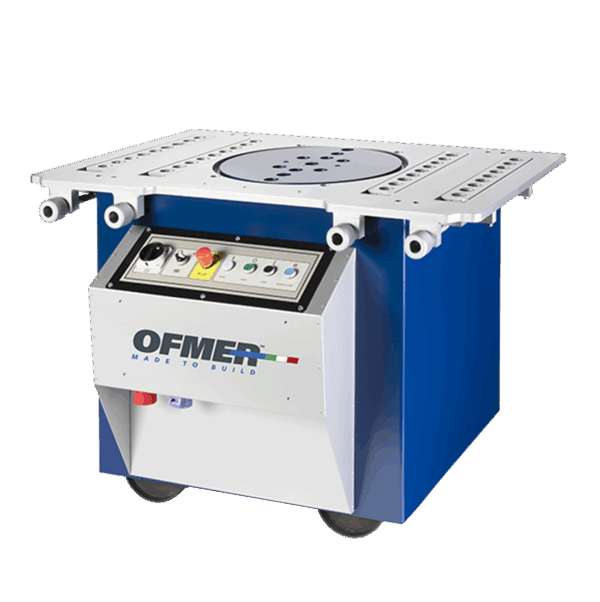

OFMER P44 EVO Rebar Bending Machine [Italian Made]

Rebar Bending machine for concrete reinforcing rebar, for high volumes of production with Digital Angle Control [in stock]

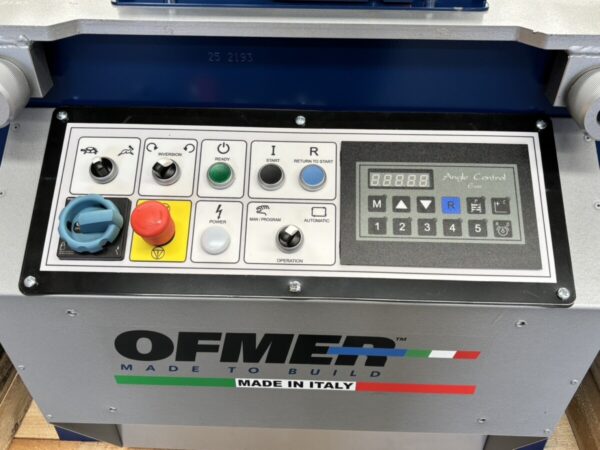

In Stock with Angle Control:

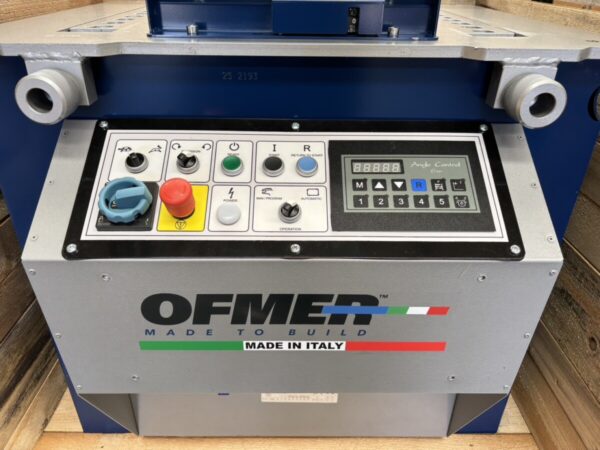

The Angle Control is an advanced electronic programmer. Built with cutting-edge techniques and circuits, and in compliance with operator safety standards, this panel allows the storage of up to 10 bending angles in any sequence, ensuring impeccable precision thanks to a reader capable of stopping the machine as soon as the desired angle is reached.

Bending capacity:

1 rod Ø38 mm (1.50 in) / res. 65 kg/mm²
1 rod Ø36 mm (1.42 in) / res. 85 kg/mm²

Dimensions: cm 105 x 95 x 89H

Available only in three-phase version

Remote Foot Switch
One Speed Bending Motor

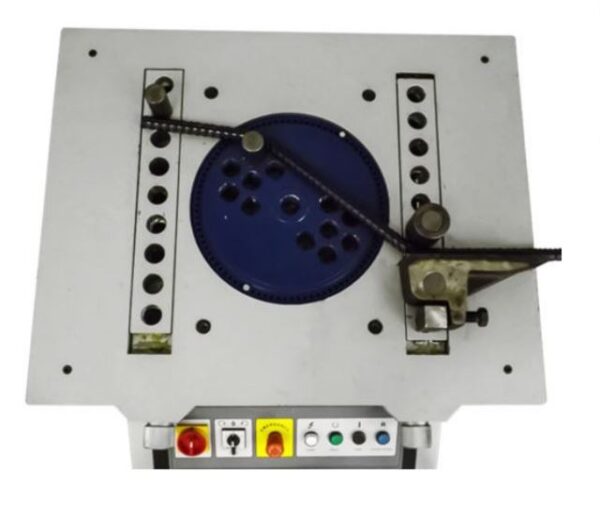

Stirrup Bending Pin
3 x Bush Holding Pins
1x Hardened Square Pin
1x Checking Block
Bending Cover with Interlock

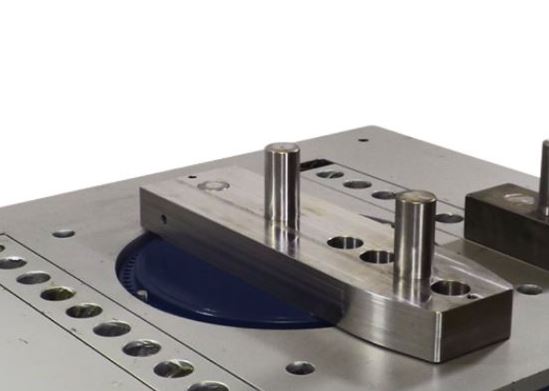

Set of 6 Bushes (50, 60,70, 80, 95, 120mm Dia)
Capacity 85 kg/mm2 – 1 x 36mm Dia, 2 x 28mm Dia and 3 x 22mm Dia
Bending speed – 6 Turns per Minute
Self-Braking Motor – 4HP/3Kw
Weight – 500Kg.

Option For Above:

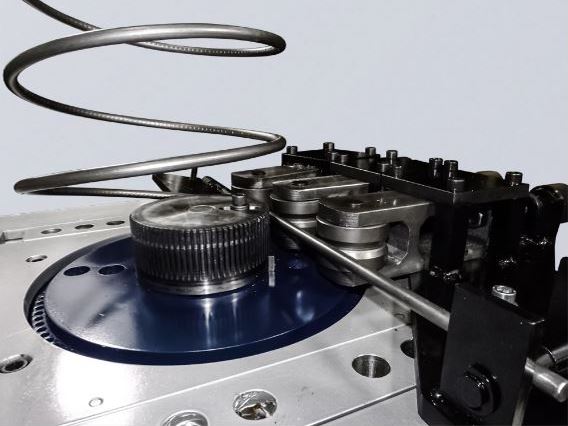

Stirrup Linear Measurer Device

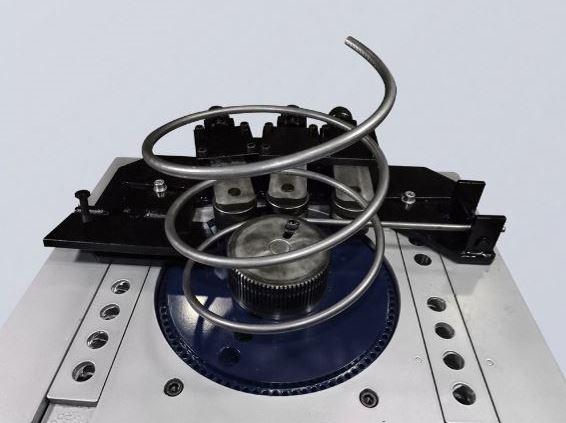

Spiral device
Digital Angle Control

MODEL	CUTS PER MINUTE	HP/ KW	65 KG/ MM² MM	85 KG/ MM² MM
P34	11	3/2,2	1Ø 30 mm 2Ø 22 mm 3Ø 18 mm	1Ø 28 mm 2Ø 20 mm 3Ø 16 mm
P38	9	4/3	1Ø 34 mm 2Ø 26 mm 3Ø 20 mm	1Ø 32 mm 2Ø 24 mm 3Ø 18 mm
P44	6	4/3	1Ø 38 mm 2Ø 30 mm 3Ø 24 mm	1Ø 36 mm 2Ø 28 mm 3Ø 22 mm
P54	6	5,5/4	1Ø 44 mm 2Ø 34 mm 3Ø 28 mm	1Ø 40 mm 2Ø 32 mm 3Ø 24 mm
P56	5	7,5/5,5	1Ø 46 mm 2Ø 36 mm 3Ø 30 mm	1Ø 42 mm 2Ø 34 mm 3Ø 26 mm
P74	5	7,5/5,5	1Ø 60 mm 2Ø 42 mm 3Ø 34 mm	1Ø 50 mm 2Ø 36 mm 3Ø 30 mm

The OFMER Range

Ofmer are a well-respected Italian manufacturer of concrete reinforcement cutting and bending equipment used on construction sites, precast fabrication companies and rebar manufacturing facilities.

Delahenty Machinery takes pride in presenting a range of products from Ofmer, a respected brand recognised for its top-quality, robust, and reliable rebar processing equipment. Our selection includes Rebar Bending Machines, Rebar Cutting Machines, and versatile Rebar Combination Bending and Cutting Machines, all designed to meet the demanding needs of construction projects.
