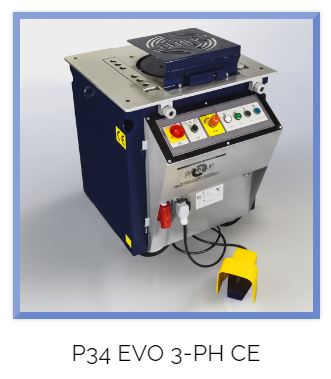

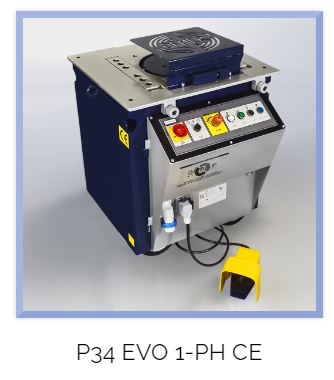

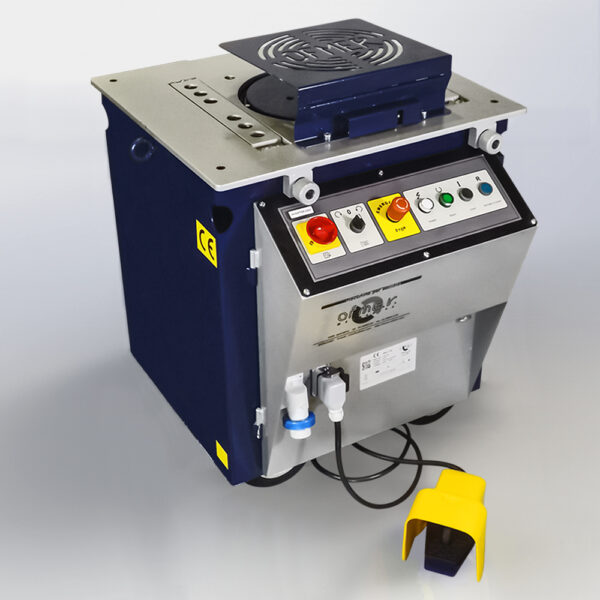

OFMER P34 EVO Rebar Bending Machine [Italian Made]

OFMER P34 EVO Rebar Bending Machine [Italian Made]
OFMER P34 EVO Rebar Bending Machine [Italian Made]
OFMER P34 EVO Rebar Bending Machine [Italian Made]

View Brochure

Description

Key Features:

  • Model P34EVO
  • 1 Phase (230v) & 3 Phase (415v) available
  • RPM 11
  • Bends up to 30mm
  • A square pin, to be used with the checking block, to counteract and annul the effort exercised by the bending on the checking block;
  • A stirrup bending pin in special cemented and hardened steel
  • Three bush holding pins in special hardened and cemented steel
  • A set of Allen keys, for ordinary maintenance
  • An electrical pedal, to facilitate the work to the operator permitting him to keep his hands free and work from all sides of the machine
  • A set of wheels, for the machine transport
  • An industrial plug, that guarantees the electrical connection
  • Two mushroom button switches, to immediately stop the machine in case of emergency. They are positioned on two opposite sides of the machine
  • Long saddles, standardly mounted on all Evo rebar bending machines – with max. 10 holes – to offer the double bending capability
  • Long saddles – with max. 10 holes – are indispensable to realize the double bending capability



MODEL

CUTS PER

MINUTE

HP/ KW65 KG/ MM²
MM		85 KG/ MM²
MM

P34

113/2,21Ø 30 mm
2Ø 22 mm
3Ø 18 mm

1Ø 28 mm
2Ø 20 mm
3Ø 16 mm

P38

94/31Ø 34 mm
2Ø 26 mm
3Ø 20 mm

1Ø 32 mm
2Ø 24 mm
3Ø 18 mm

P44

64/31Ø 38 mm
2Ø 30 mm
3Ø 24 mm

1Ø 36 mm
2Ø 28 mm
3Ø 22 mm

P54

65,5/41Ø 44 mm
2Ø 34 mm
3Ø 28 mm

1Ø 40 mm
2Ø 32 mm
3Ø 24 mm

P56

57,5/5,51Ø 46 mm
2Ø 36 mm
3Ø 30 mm

1Ø 42 mm
2Ø 34 mm
3Ø 26 mm

P7457,5/5,51Ø 60 mm
2Ø 42 mm
3Ø 34 mm

1Ø 50 mm
2Ø 36 mm
3Ø 30 mm

The OFMER Range

 Ofmer are a well-respected Italian manufacturer of concrete reinforcement cutting and bending equipment used on construction sites, precast fabrication companies and rebar manufacturing facilities.

Delahenty Machinery takes pride in presenting a range of products from Ofmer, a respected brand recognised for its top-quality, robust, and reliable rebar processing equipment. Our selection includes Rebar Bending Machines, Rebar Cutting Machines, and versatile Rebar Combination Bending and Cutting Machines, all designed to meet the demanding needs of construction projects
