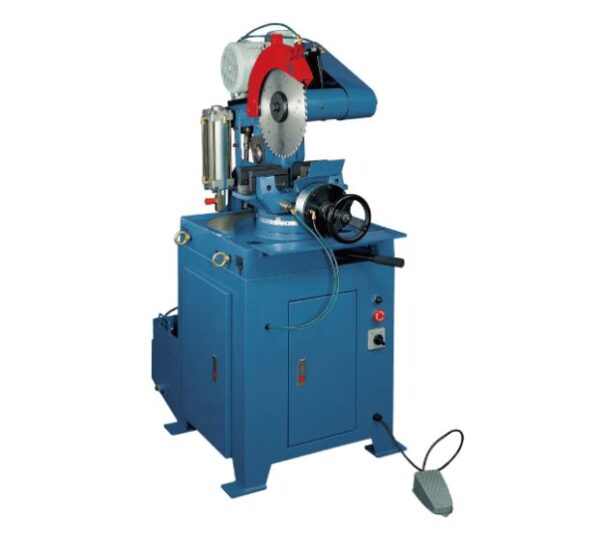

FONG HO – FHC-355SA Circular Cold Saw (Pneumatic Semi Auto / Copper / Aluminium)
Specifications
| Make | FONG HO |
|---|---|
| Model | FHC-355SA |
Description
FONG HO – FHC-355SA Circular Cold Saw Pneumatic Semi Auto / Copper / Aluminium
- Made in Taiwan
| MODEL | FHC-355SA | |
|---|---|---|
| Main Drive Motor | 5 HP (4 Pole) 50/60 HZ | |
| Blade Speeds | 50HZ 3200 RPM 60HZ 3200 RPM | |
| Head Swivel | 90º / 45º | |
| Clamping Vise | Double | |
| Coolant Pump Motor | 40W | |
| Max. Clamping Capacity | 150 | |
| Saw Blade Size | Diameter (mm) | TIP Ø305-Ø355 (12″-14″) Standard Ø355 |
| Bore (mm) | Ø25.4 | |
| Pin Holes (mm) | — | |
| Bar Feeding Length | Single Stroke (mm) | — |
| Double Stroke (mm) | — | |
| Three Stroke (mm) | — | |
| Bar Feeding Servo Motor | — | |
| Hydraulic Pump Motor | — | |
| Operation Pressure | 6 kg/cm² (120 ℓ/min) | |
| Machine Dimensions (LxWxH) | 1400x1050x1800 | |
| Packing Dimensions (LxWxH) (mm) | 750x1050x1800 | |
| Packing Dimensions (LxWxH) (inch) | 30″x42″x60″ | |
| Net Weight | 340 kgs (748 lbs) | |
| Gross Weight | 400 kgs (880 lbs) | |

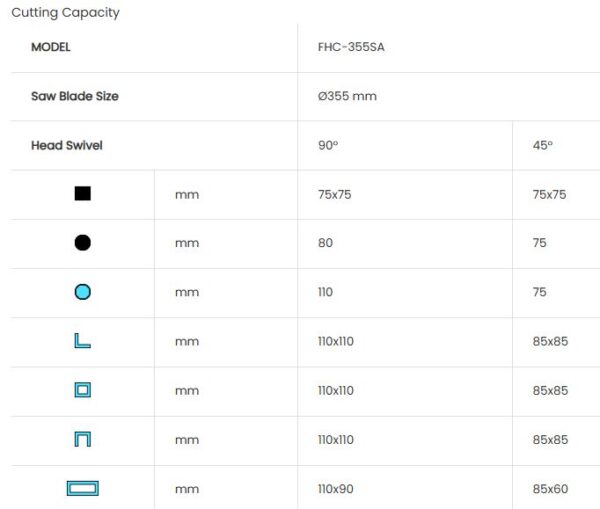

Cutting Capacity
| MODEL | FHC-355SA | ||
| Saw Blade Size | Ø355 mm | ||
| Head Swivel | 90° | 45° | |
 | mm | 75×75 | 75×75 |
 | mm | 80 | 75 |
 | mm | 110 | 75 |
 | mm | 110×110 | 85×85 |
 | mm | 110×110 | 85×85 |
 | mm | 110×110 | 85×85 |
 | mm | 110×90 | 85×60 |
Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.
Optional Equipment:
Saw blade, cutting fluid.
