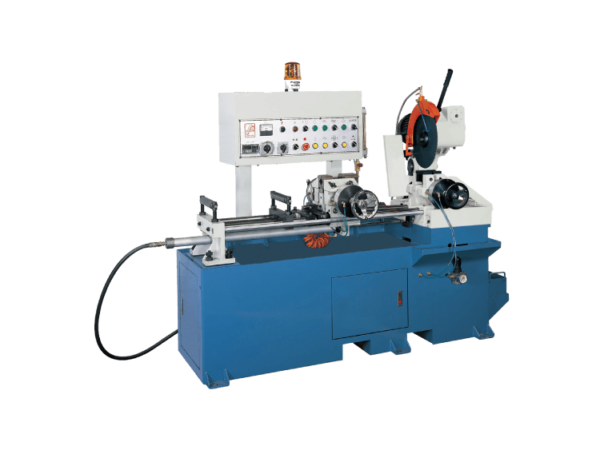

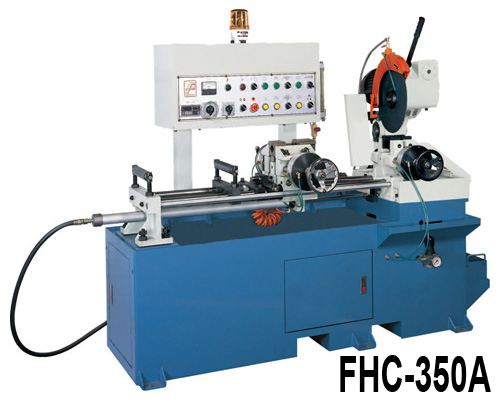

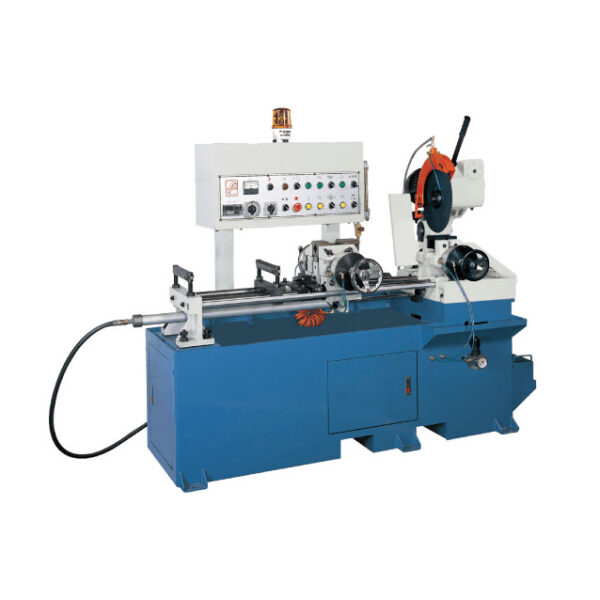

FONG HO – FHC-350A – Air Automatic Type Circular Cold Saw

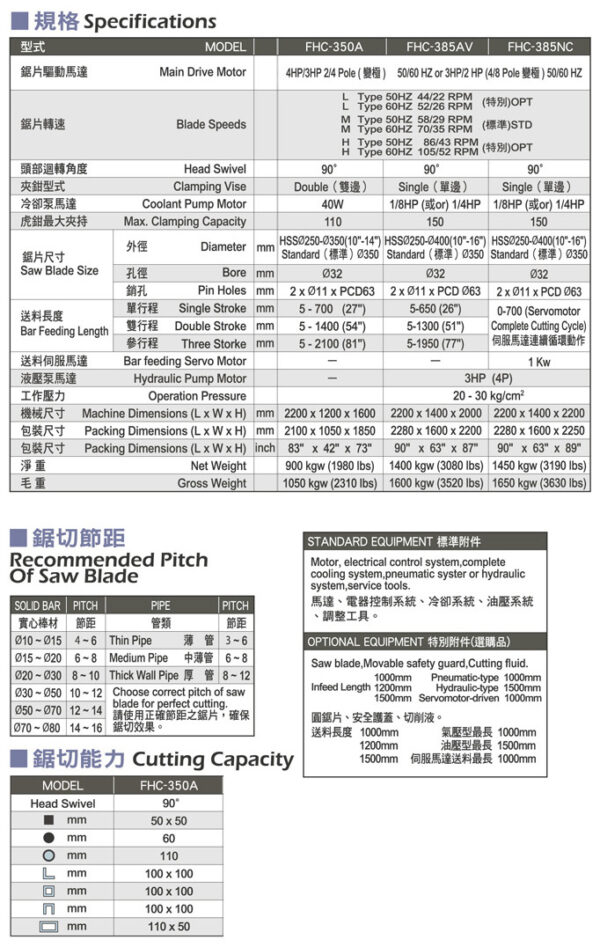

Specifications
| Make | FONG HO |
|---|---|
| Model | FHC-350A |
Description
FONG HO – FHC-350A – Air Automatic Type Circular Cold Saw
Hydraulic Automatic Type Metal Sawing Machine

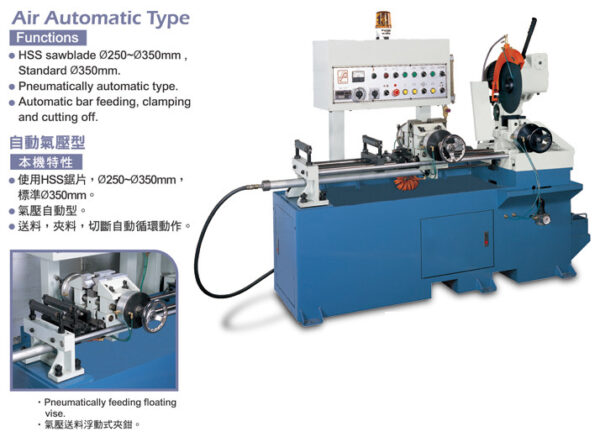

- HSS sawblade ø250 ~ ø350mm, Standard ø350mm.
- Pneumatically automatic type.
- Automatic bar feeding, clamping and cutting off.
Standard Equipment:
- Motor, electrical control system, complete cooling system, pneumatic system or hydraulic system, service tools.

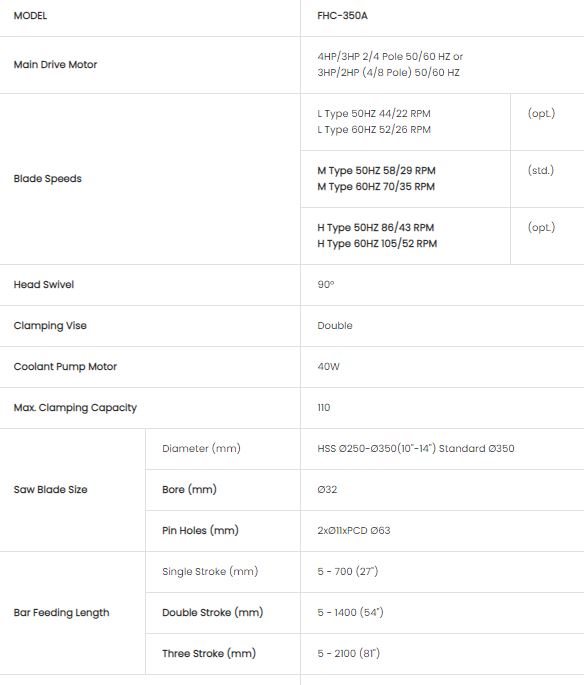

| Blade Speeds | L Type 50HZ 44/22 RPM L Type 60HZ 52/26 RPM | (opt.) | |
| M Type 50HZ 58/29 RPM M Type 60HZ 70/35 RPM | (std.) | ||
| H Type 50HZ 86/43 RPM H Type 60HZ 105/52 RPM | (opt.) | ||
| Head Swivel | 90° | ||
| Clamping Vise | Double | ||
| Coolant Pump Motor | 40W | ||
| Max. Clamping Capacity | 110 | ||
| Saw Blade Size | Diameter (mm) | HSS Ø250-Ø350(10″-14″) Standard Ø350 | |
| Bore (mm) | Ø32 | ||
| Pin Holes (mm) | 2xØ11xPCD Ø63 | ||
| Bar Feeding Length | Single Stroke (mm) | 5 – 700 (27″) | |
| Double Stroke (mm) | 5 – 1400 (54″) | ||
| Three Stroke (mm) | 5 – 2100 (81″) | ||
