OFMER – Electric shear C34 Evo [Made in Italy]

OFMER - Electric shear C34 Evo [Made in Italy]
OFMER - Electric shear C34 Evo [Made in Italy]
OFMER - Electric shear C34 Evo [Made in Italy]

View Brochure

Description

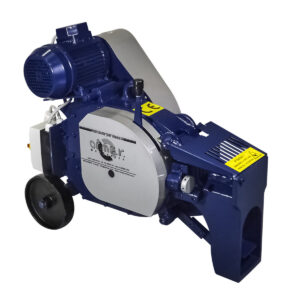

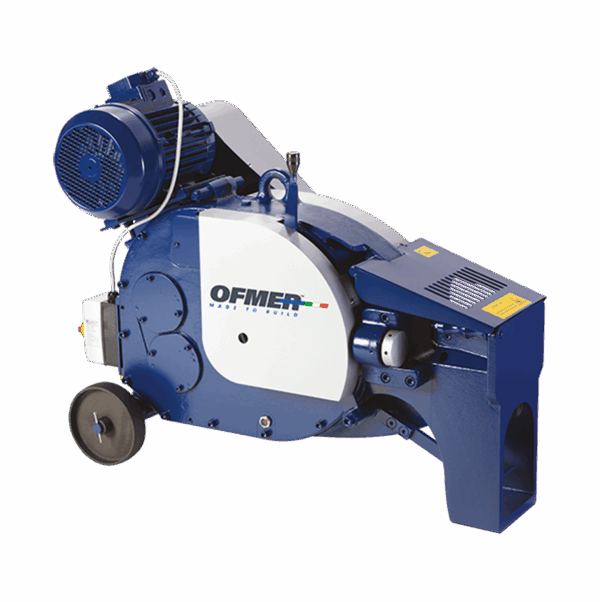

C34 Evo Iron Cutting Machine – OFMER

  • Machine Size 82cm x 50cm x 68cm
  • Machine Weight 235kg
  • Drive Motor 3hp/2.2kw
  • Available in single phase 220V 50hz and 3 phase 415v 50hz
  • Cutting Capacity
    • Single Bar ∅28mm Diameter
    • Two Bars ∅20mm Diameter
    • Three Bars ∅16mm Diameter
  • Two hardened steel cutting blades each with four cutting edges
  • Three grease lubrication points
  • Locator for bar alignment
  • Option of a workbench and operator pedal

The series includes six models, designed to meet a wide range of professional needs.

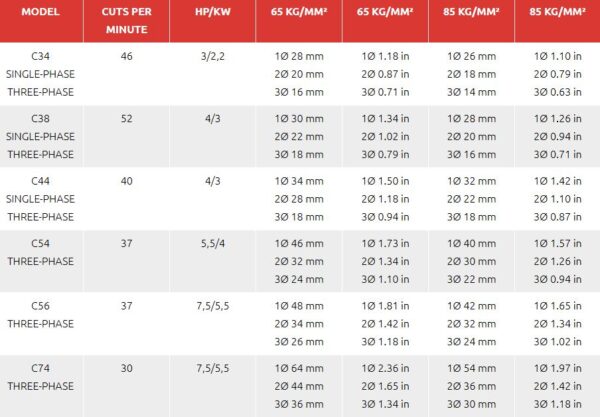

MODEL

CUTS PER

MINUTE

HP/KW65 KG/MM²
MM

85 KG/MM²
MM

C34
1-PH
3-PH

463/2.21Ø 28 mm
2Ø 20 mm
3Ø 16 mm		1Ø 26 mm
2Ø 18 mm
3Ø 14 mm
C38
1-PH
3-PH		524/31Ø 30 mm
2Ø 22 mm
3Ø 18 mm

1Ø 28 mm
2Ø 20 mm
3Ø 16 mm

C44
1-PH
3-PH

404/31Ø 34 mm
2Ø 28 mm
3Ø 18 mm		1Ø 32 mm
2Ø 22 mm
3Ø 18 mm
C54
3-PH		375.5/41Ø 46 mm
2Ø 32 mm
3Ø 24 mm

1Ø 40 mm
2Ø 30 mm
3Ø 22 mm

C56
3-PH

377.5/5.51Ø 48 mm
2Ø 34 mm
3Ø 26 mm		1Ø 42 mm
2Ø 32 mm
3Ø 24 mm
C74
3-PH		307,5/5,51Ø 64 mm
2Ø 44 mm
3Ø 36 mm

1Ø 54 mm
2Ø 36 mm
3Ø 30 mm



Ofmer shears are manufactured by combining advanced construction technologies with the experience accumulated over time.

  • The machine body, produced in a single block of spheroidal cast iron, guarantees solidity and resistance without the need for welding.
  • Two reductions that minimize stresses and ensure greater durability of blades and components in motion, while reducing overall noise.
  • Simplified lubrication and screw adjustment that contribute to improving the quality of the work and the results obtained.
