COMAC – MODEL 315 – Section and Profile Rolling Machine
Specifications
| Make | COMAC |
|---|---|
| Model | 315 |
| Series | 3000 |
Description
COMAC – MODEL 315 – Section and Profile Rolling Machine
- Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
- 3 driving rolls to guarantee maximum drive on the profile
- Lateral guide rolls with three-dimensional adjustment
- Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC

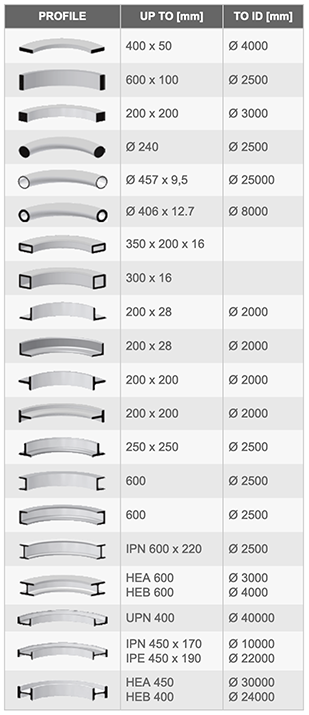

- Modular rolls that allow the bending of most profiles

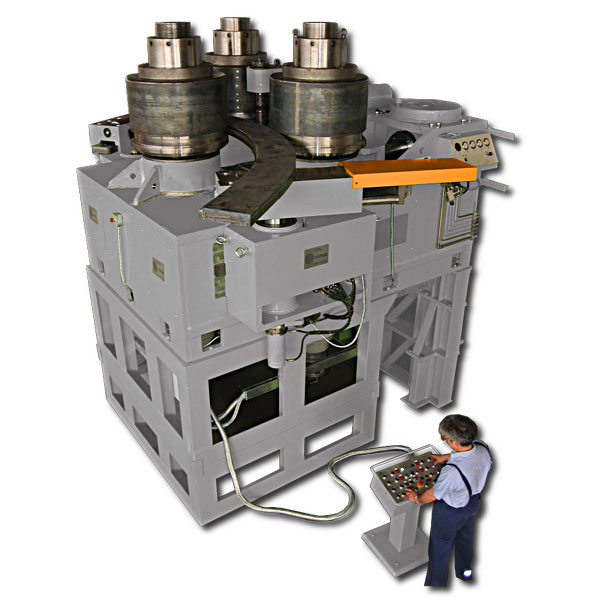

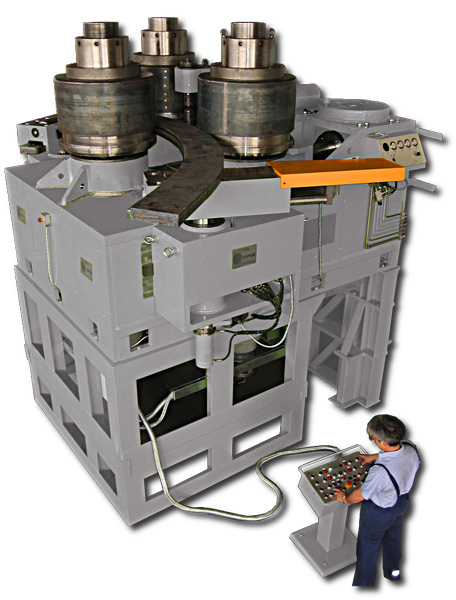

- Free standing remote control station to control the machine in safety
- Possibility to install the machine both in vertical and horizontal position
- Torque limiter installed on top roll shaft
- One-piece fabricated steel frame
- Shaft and pinions installed on high dynamic load roller bearings
- Gears coupled directly on splined shaft
- Water based environmental friendly paint
- Machines compliant to 2006/42/CE standard
Control Options
- Standard machines are controlled by means of a push button board that allows the variation of the position of the bending rolls and by a pedal that control the advance and retreat of the profile.
- Depending on the deformation work to be performed, numerous additional controls are available like, for example, the hydraulic regulation of the lateral guide rolls, the speed regulation by means of a potentiometer, the double speed positioning of the bending rolls and the remote control of the special tooling.
- In case a high repeatability is required or if particular bending geometries must be achieved, the machines are equipped with a programmable positioner (NC), numerical controls with independent axes and numerical controls with interpolated axes (CNC).
