Specifications

Make

COMAC

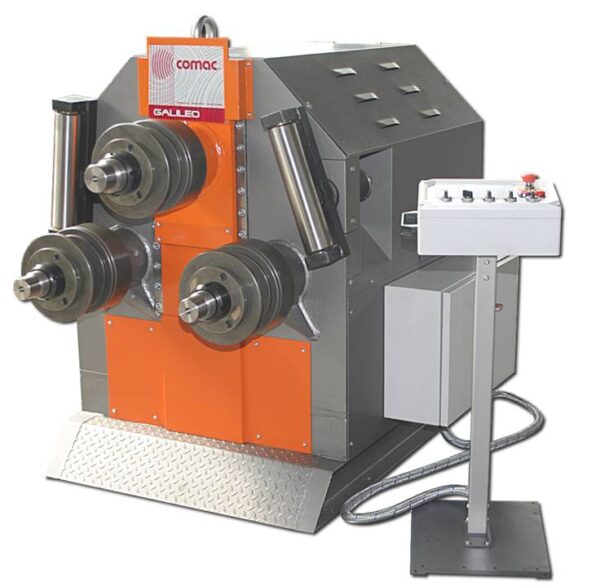

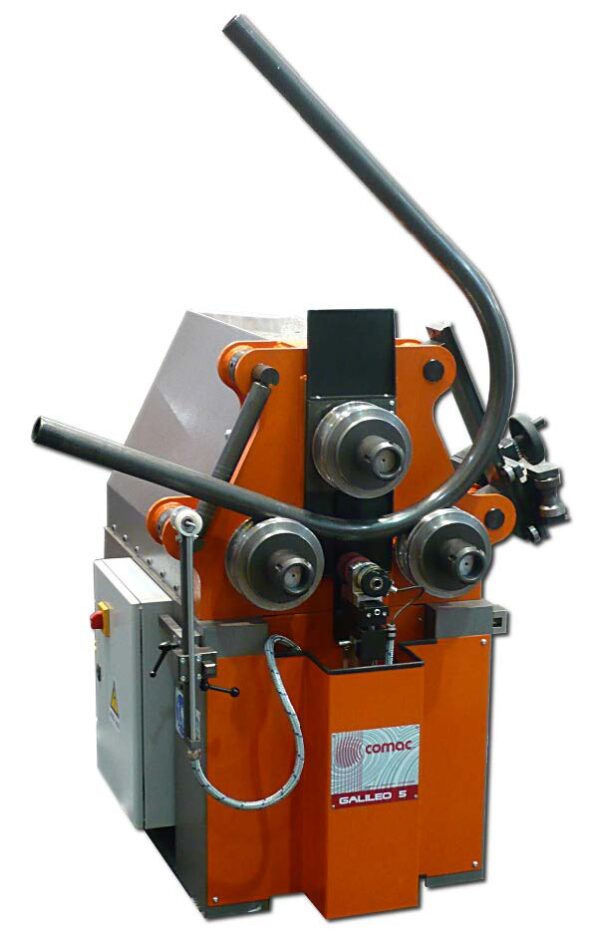

Description

Features:

  • Bending capacity: pipe up to 4″; angle up to 80×80 mm (3″x3″)
  • Three driving rolls
  • Each roll shaft individually driven by AE motorband gearbox
  • Pyramid style design
  • Hydraulic adjustment of bending roll
  • Combination horizontal-vertical working position
  • Digital readout
  • One axis programmable position controller
  • Two-directional adjustable lateral guide rolls
  • Free-standing remote control

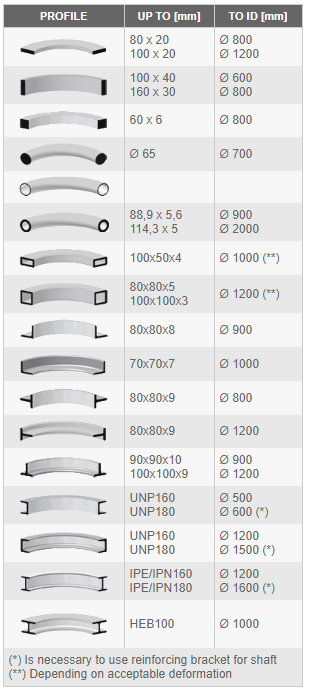

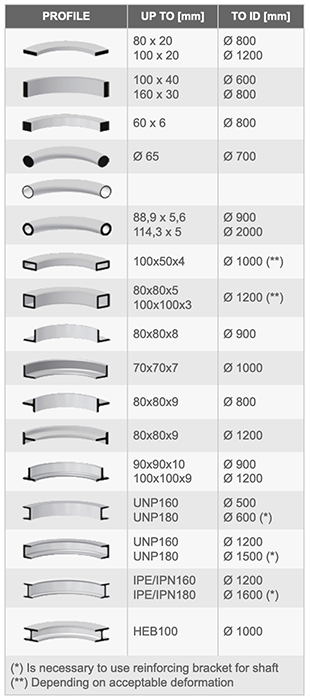

Specifications:

  • Section modulus [cm³] 33
  • Diameter of shafts (Upper/Lower) [mm] 85 (top shafts)
  • 75 (bottom shafts)
  • Diameter of rolls [mm] 245
  • Power output [kW] 8,5
  • Rolling speed [m/min] 4
  • Weight [kg] 1950

Control Options:

G80 HV

  • Pyramid style, three driving rolls
  • Hydraulic adjustment of the bending roll
  • Position referenced on digital readout
  • Electronic one-axis position controller
  • Standard equipment: 9 universal smooth rolls

G80 HV with Two-axis position controller PQ2

  • Controlled axes: profile feeding and position of the bending roll (simultaneously actuated)

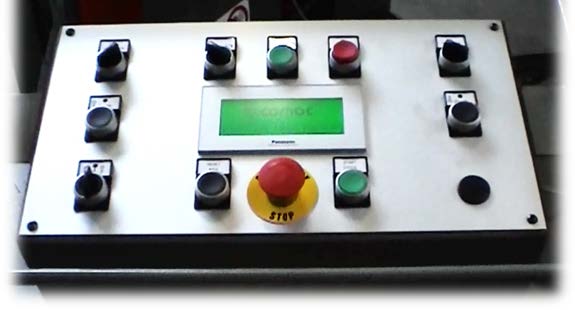

  • Operator’s panel consisting of a touch screen with on-screen keyboard.
  • Storage capacity: 99 programs with 30 steps per program

G80 CN2.1V

  • 2-axis CNC control with variable profile feeding speed and two speeds of
  • bending rolls
  • User-friendly programming with graphic interface and direct radius input
  • Data-base of profile bending properties
  • Prepared for remote assistance
  • Industrial PC – Windows 7 with 15.4” touch screen + PLC Beckhoff
