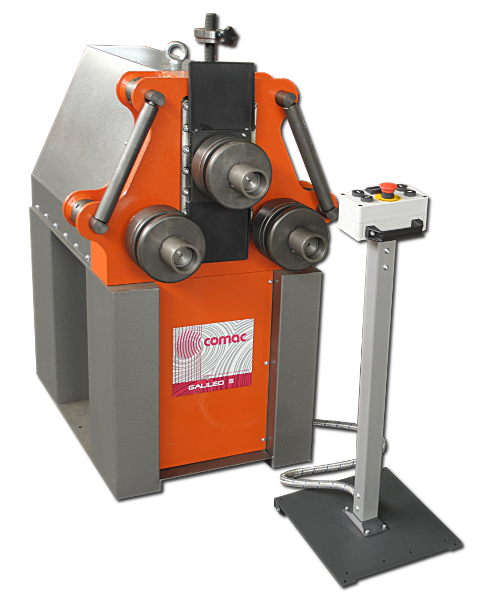

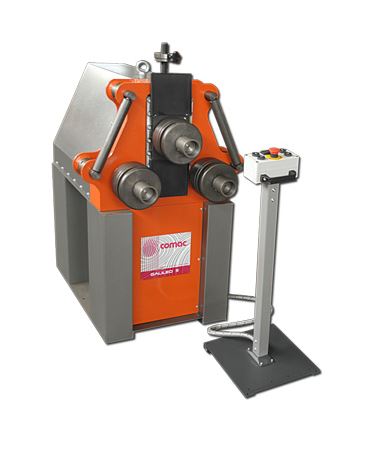

COMAC – GALILEO 50 – Section Roller

Description

Features:

• – Three driving rolls
• – Pyramid style design

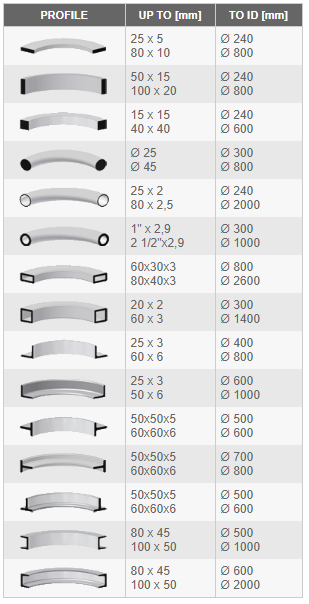

• – Bending capacity: pipe up to 4″; angle up to 80×80 mm (3″x3″)
• – Hydraulic adjustment of bending roll
• – Combination horizontal-vertical working position
• – Mechanical positive stop for consistent repositioning
• – Digital readout

Specifications:

• Section modulus [cm³] 10
• Diameter of shafts (Upper/Lower) [mm] 50
• Diameter of rolls [mm] 180
• Power output [kW] 1,5
• Rolling speed [m/min] 4,4
• Weight [kg] 530

Control Options:

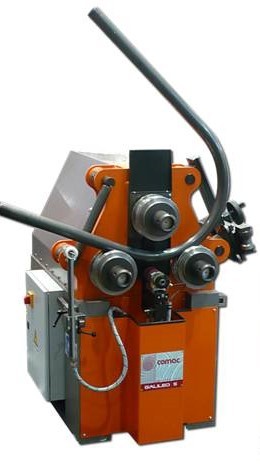

G50 HV

• Pyramid style, three driving rolls
• Hydraulic adjustment of the bending roll
• Position referenced on digital readout
• Standard equipment: 9 universal smooth rolls

G50 HV with Two-axis position controller PQ2

• Controlled axes: profile feeding and position of the bending roll (simultaneously actuated)
• Operator’s panel consisting of a touch screen with on-screen keyboard.
• Storage capacity: 99 programs with 30 steps per program

G50 CN2.1V

• 2-axis CNC control with variable profile feeding speed and two speeds of
• bending rolls
• User-friendly programming with graphic interface and direct radius input
• Data-base of profile bending properties
• Prepared for remote assistance
• Industrial PC – Windows 7 with 15.4” touch screen + PLC Beckhoff
