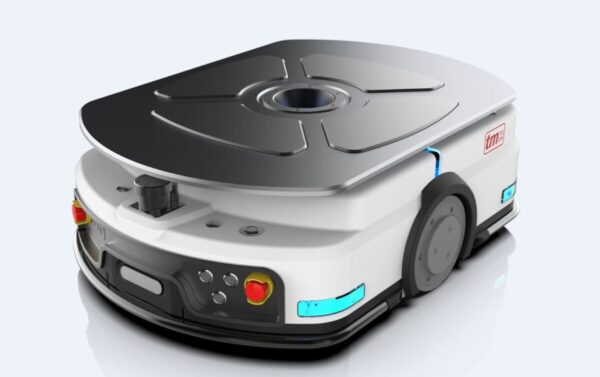

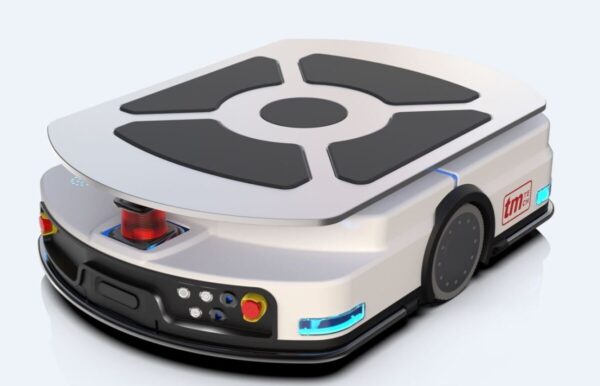

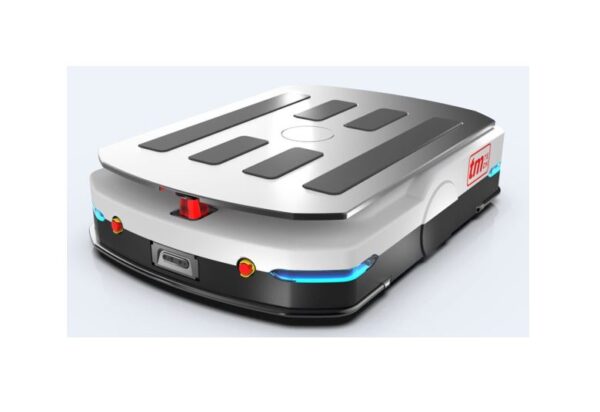

YLM – Model TM-1000-JU – Lurking AMR
Specifications
| Make | YLM |
|---|---|
| Model | TM-1000-JU |
Description
YLM – Model TM-1000-JU – Lurking AMR
AMR ROBOT, AMR, AGV
Applicable industries
- Applicable Industries:
- Material handling and delivery (metal machining, automotive manufacturing, electronic assembling)
- Logistics and warehousing
Features and Benefits
- Automatic obstacle avoidance, advanced multi-anti-collision sensors, and eliminating human negligence.
- Autonomous movement for efficient operation.
- Digital tracking of delivery operations records.
- Automatic lifting and delivery of material racks, task system management, and initiative path planning.
- Running with the automatic charger, raising the working efficiency up to 40%.
| Model | TM-300-JU | TM-600-JU | TM-1000-JU | |
|---|---|---|---|---|
| Rated load | 300 kg | 600 kg | 1000 kg | |
| Vehicle dimension: L/W/H | 750 X540 X230 mm | 930 X660 X250 mm | 1180 X860 X265 mm | |
| Weight | 92 kg | 155 kg | 300 kg | |
| Lifting height | 60 mm | 60 mm | 60 mm | |
| Minimum ground clearance | 25 mm | 25 mm | 25 mm | |
| Speed (empty/loaded) | 2.0/1.5 m/s | 1.9/1.3 m/s | 1.5/1.3 m/s | |
| Max. Gradeability (empty/loaded) | 5/3 % | 5/3 % | 5/3 % | |
| Minimum turning radius | 375 mm | 465 mm | 630 mm | |
| Minimum channel width | 950 mm | 1130 mm | 1460 mm | |
| Driving mode | Differential | Differential | Differential | |
| Power configuration | 48V (20Ah) | 48V (30Ah) | 48V (50Ah) | |
| Charging time | ≦2 hour | ≦2 hour | ≦2 hour | |
| Endurance time | 8 hour | 8 hour | 8 hour | |
| Navigation mode | Lidar SLAM | Lidar SLAM | Lidar SLAM | |
| Positioning accuracy | ±10 mm | ±10 mm | ±10 mm | |
| Safe distance | 5 mm | 5 mm | 5 mm | |
| Communication mode | WIFI | WIFI | WIFI | |
The above machine specification is subject to change without prior notice due to the continuous improvement of R&D.
