PAYAPRESS – HBC-CP120 ES/EH – Copper Punching and Cutting Machine
Specifications
Make | PAYAPRESS |
---|---|
Model | HBC-CP120 ES/EH |
Description
PAYAPRESS – HBC-CP120 ES/EH – Copper Punching and Cutting Machine
Busbar Copper Punching and Copper Cutting Machine
- Cutting process – the maximum size for the busbar is 12 x 120 mm.
- Punching process – the maximum busbar size that can be obtained is 12 x 120.
Metering systems

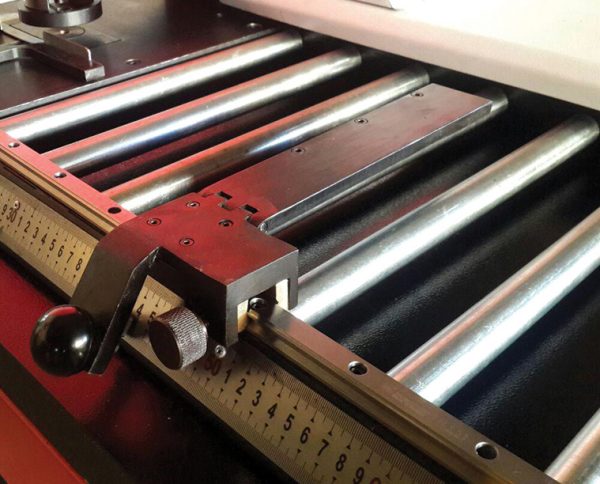

- A) Handy metering system: This metering system is already installed on the device with a very high precision adjustment.
- B) Programmable metering system: One of the greatest features in this section that is optional, and could make this device even more user-friendly is the “Programmable metering system”, which helps you to have a very high accuracy in positioning of cuts. The programmable metering system in the cutting section is capable to be programmed in absolute and incremental positions which is up to 20 positions. Also “Rollers” at two sides of the cutter, make the busbar movement pretty easy.
Punching Male and Female dies
- The male and female dies are the main tools for punching and they are one of the most important and practical equipment of metal products and are made in different models. In all of them, the punching operation is done by two parts, the Male and female die, which punches the desired special shape from the raw sheet (Busbar).
Cutter and Puncher Indicator Control Panel
- These panels are installed in both directions of the cutter and the puncher, and the relevant panel performs the manual and automatic movement of the longitudinal position of the cutter as well as the longitudinal and transverse position of the puncher.
Copper punching dies
- This device includes “Circle dies” from the size: M6 up to M18 also “Oval and rectangle dies” which are optional and can be made by customer’s order.
