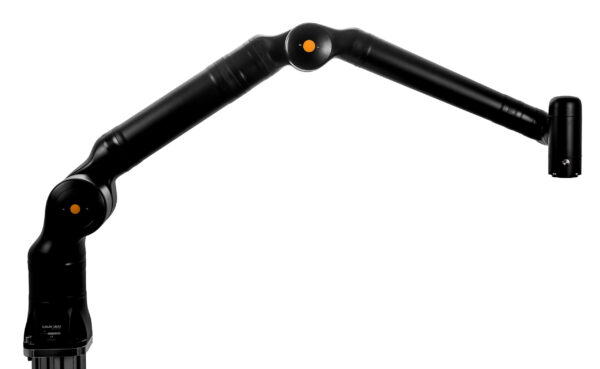

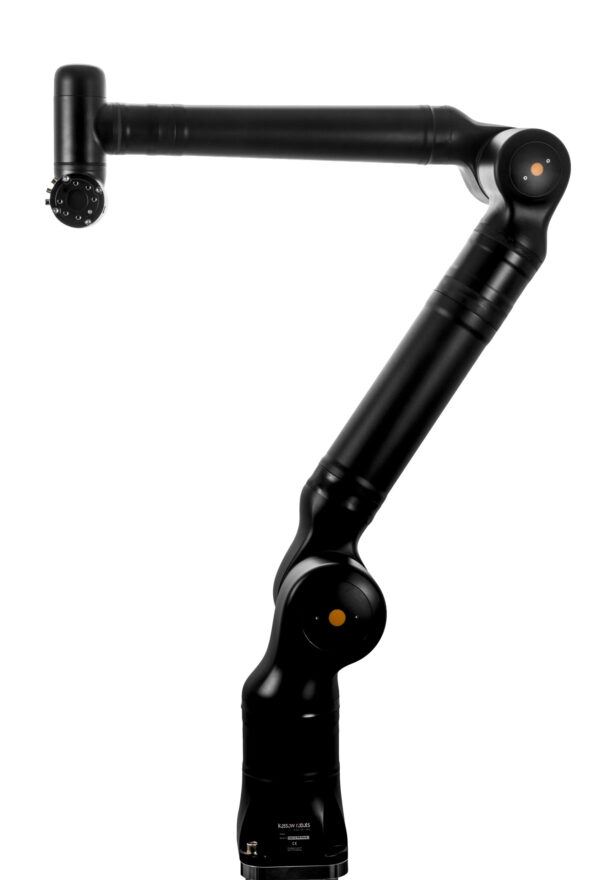

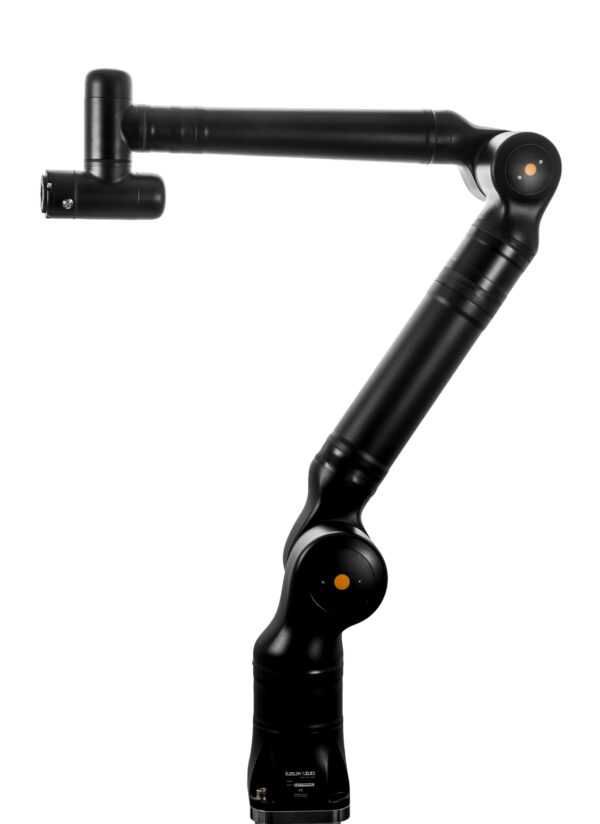

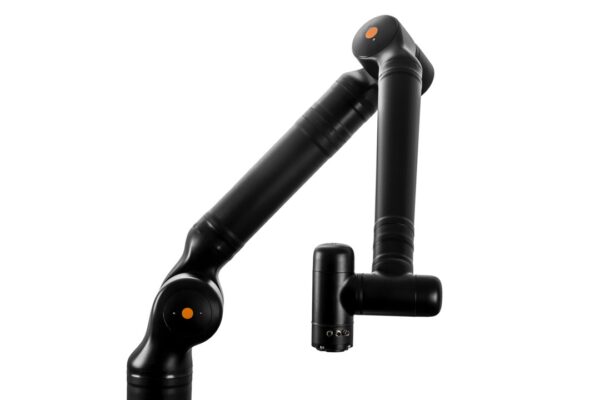

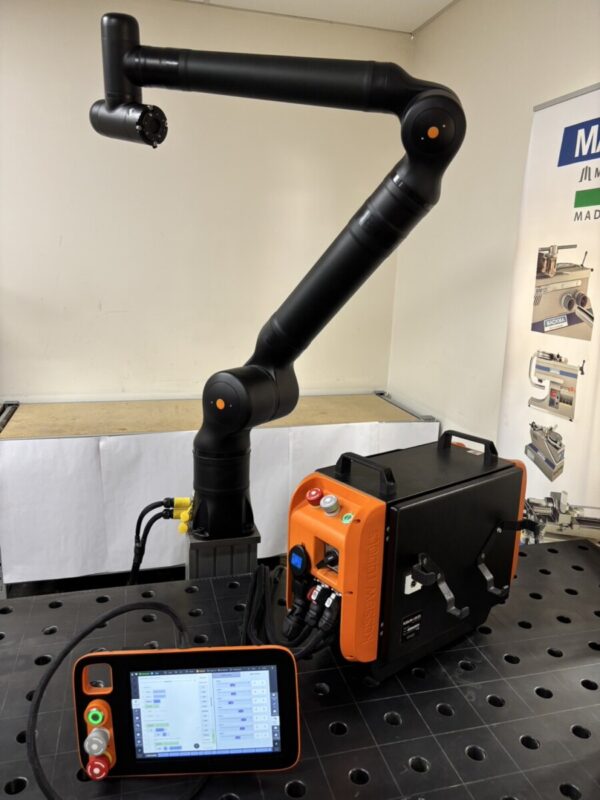

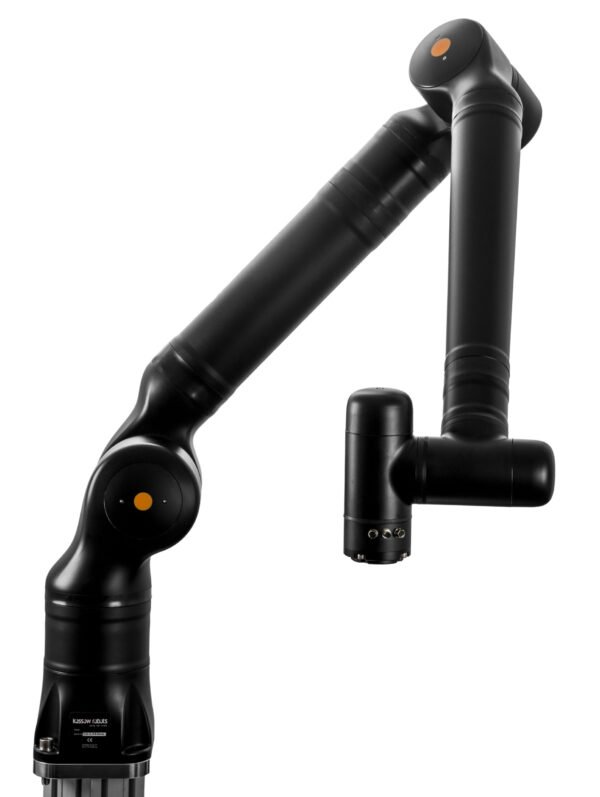

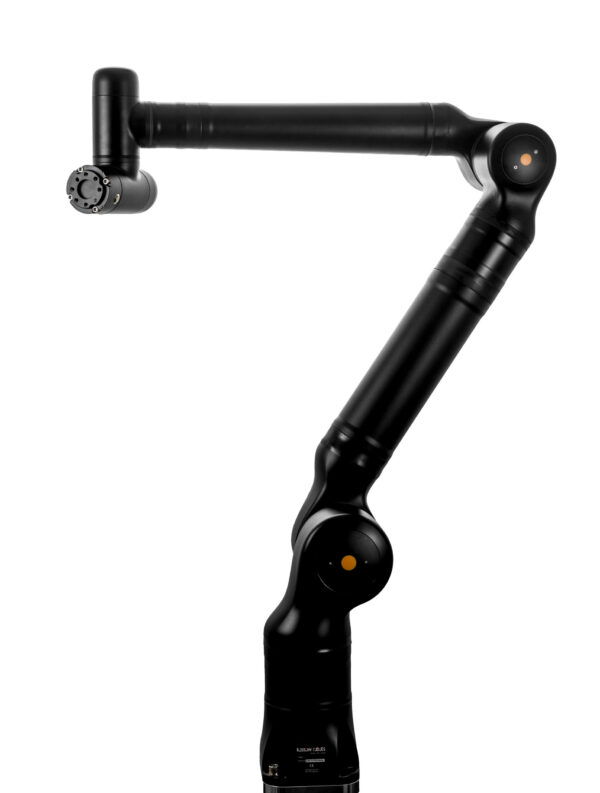

Kassow Robots – KR1410 – 7 AXIS Collaborative Cobot

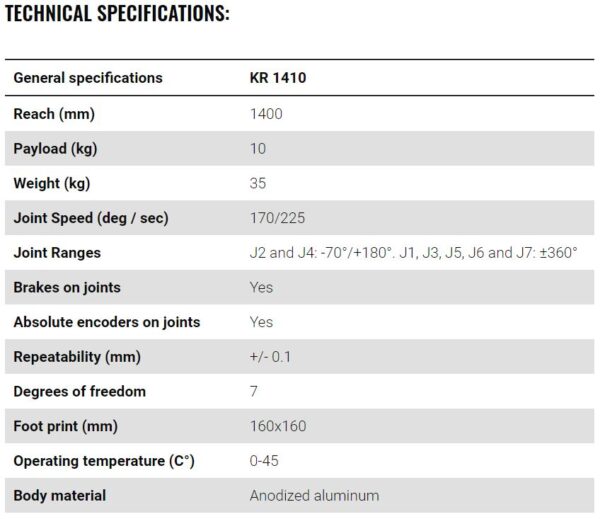

Specifications
| Make | Kassow Robots |
|---|---|
| Model | KR1410 |
Description
Kassow Robots – KR1410 – 7 AXIS Collaborative Cobot
- Payload: 10 kg
- Reach in all directions: 1400mm
- Weight: 35 kg
- Degrees of freedom: 7
- Repeatability: +/0.1mm

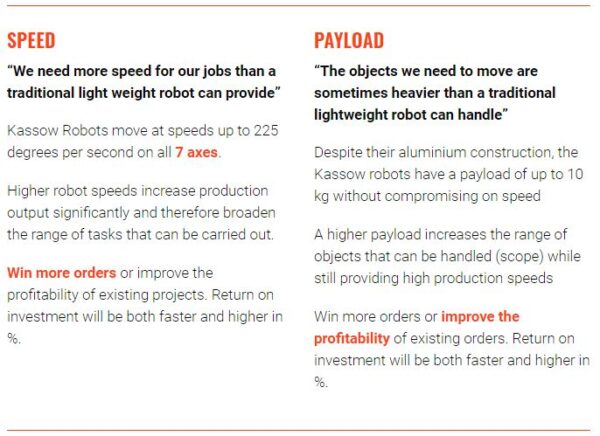

- Joint speed (deg / sec): 170/225
- IP specification: IP54
A 7-axis cobot offers a greater range of motion, increased payload capacity, and improved precision. It can access hard-to-reach areas with ease, handle heavier objects, and perform delicate tasks with greater accuracy, making it an ideal solution for a wide range of industrial tasks.
- Enhanced precision
- Increased reach
- Improved payload capacity

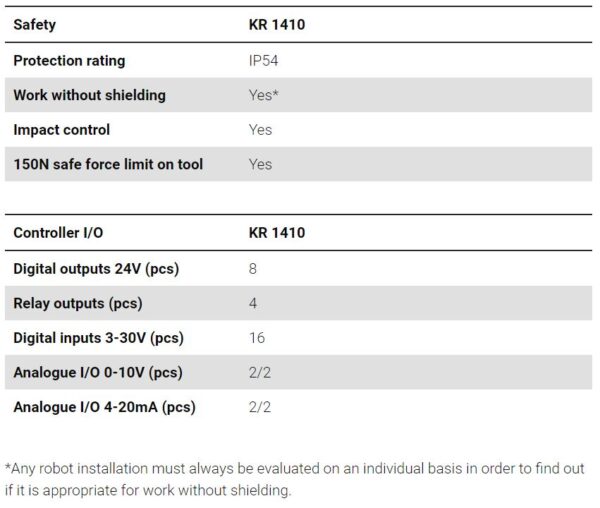

- Advanced safety features

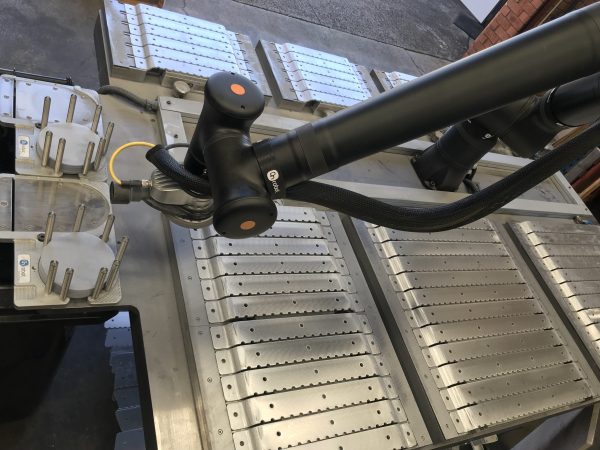

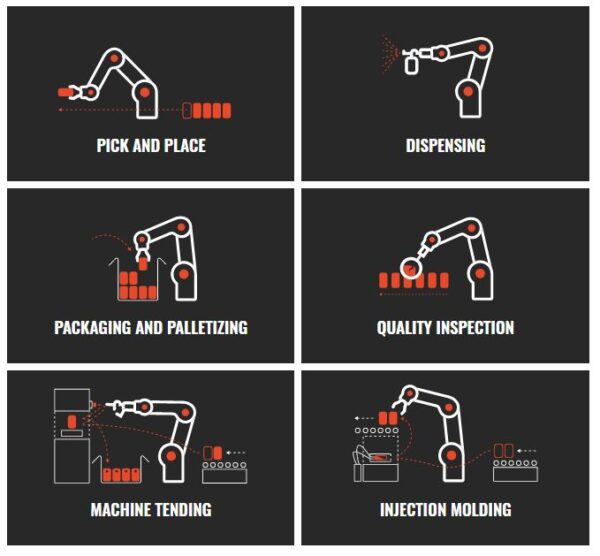

Equipped with sensors that detect overload, ensuring that they can operate safely in shared workspaces without the need for special safety measures. This expands the range of possible applications, including repetitive, dangerous, and dirty tasks, making our cobots an efficient and versatile solution for a variety of industrial applications. Risk assessment analyse has to be done before anything.

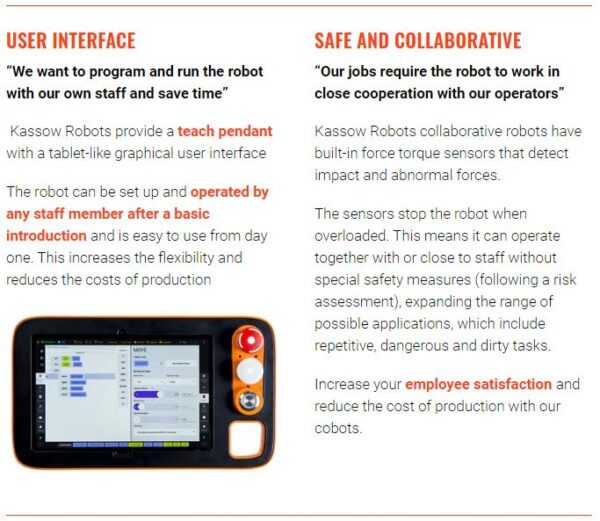

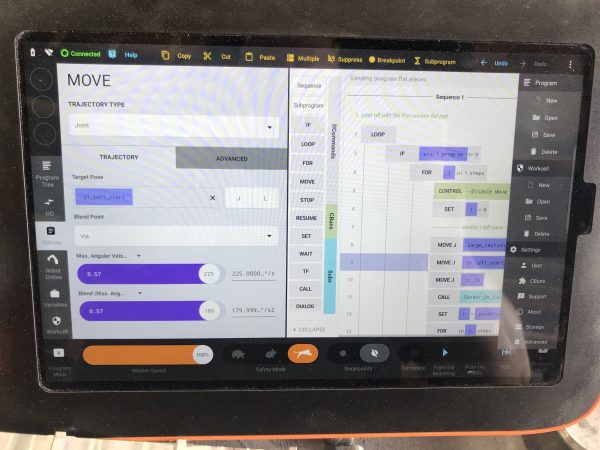

Intuitive user interface. The modern-tablet based interface is using all benefits of the powerful Android System to help user build their applications.
- Split screen concept
- Block based programming
- Optimised for robot applications
- Responsive and intuitive environment
- Dynamic content support, native 3D engines
Modularity. Easy integration of various peripherals, grippers, vision systems or function extensions is backed by the modular infrastructure. Capability bundles (Cbuns) are our elementary building blocks available for specific solutions and application realisation.

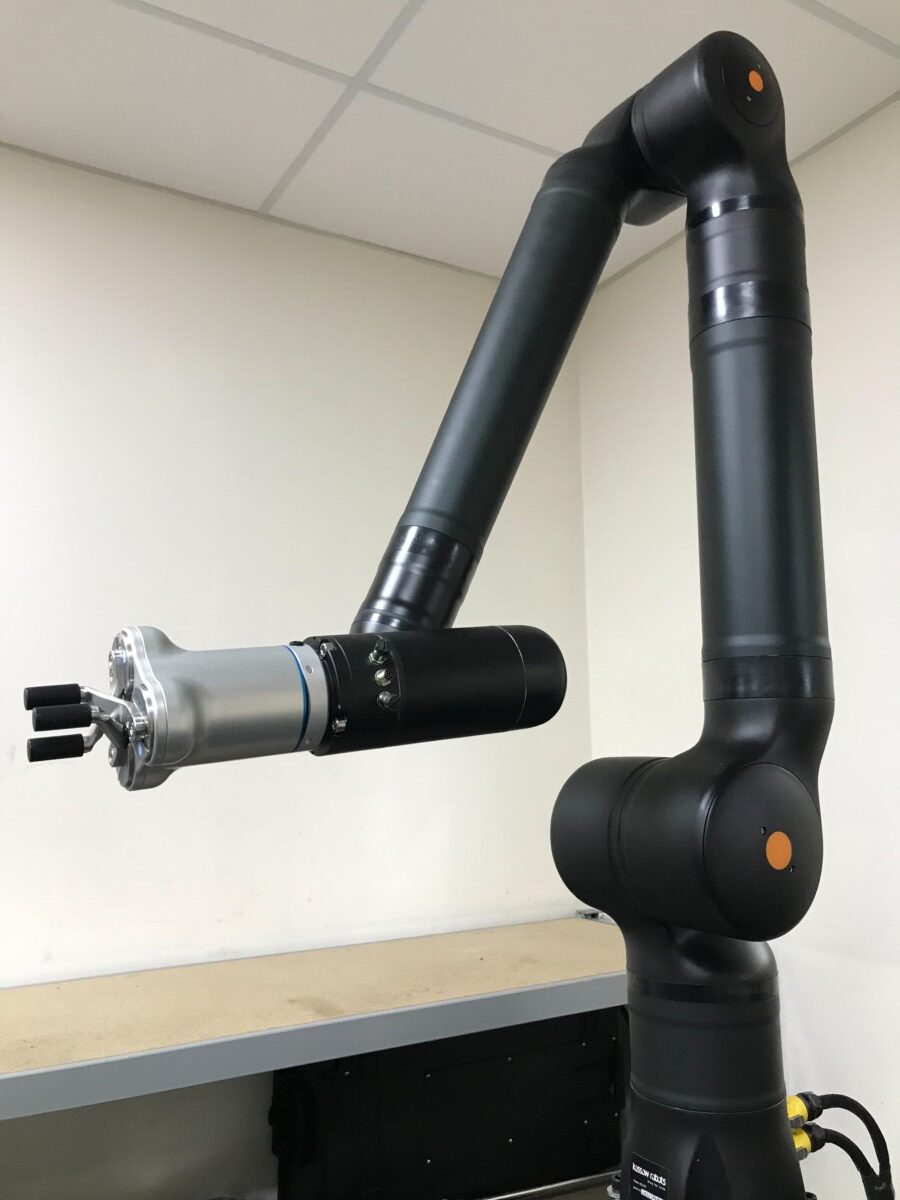

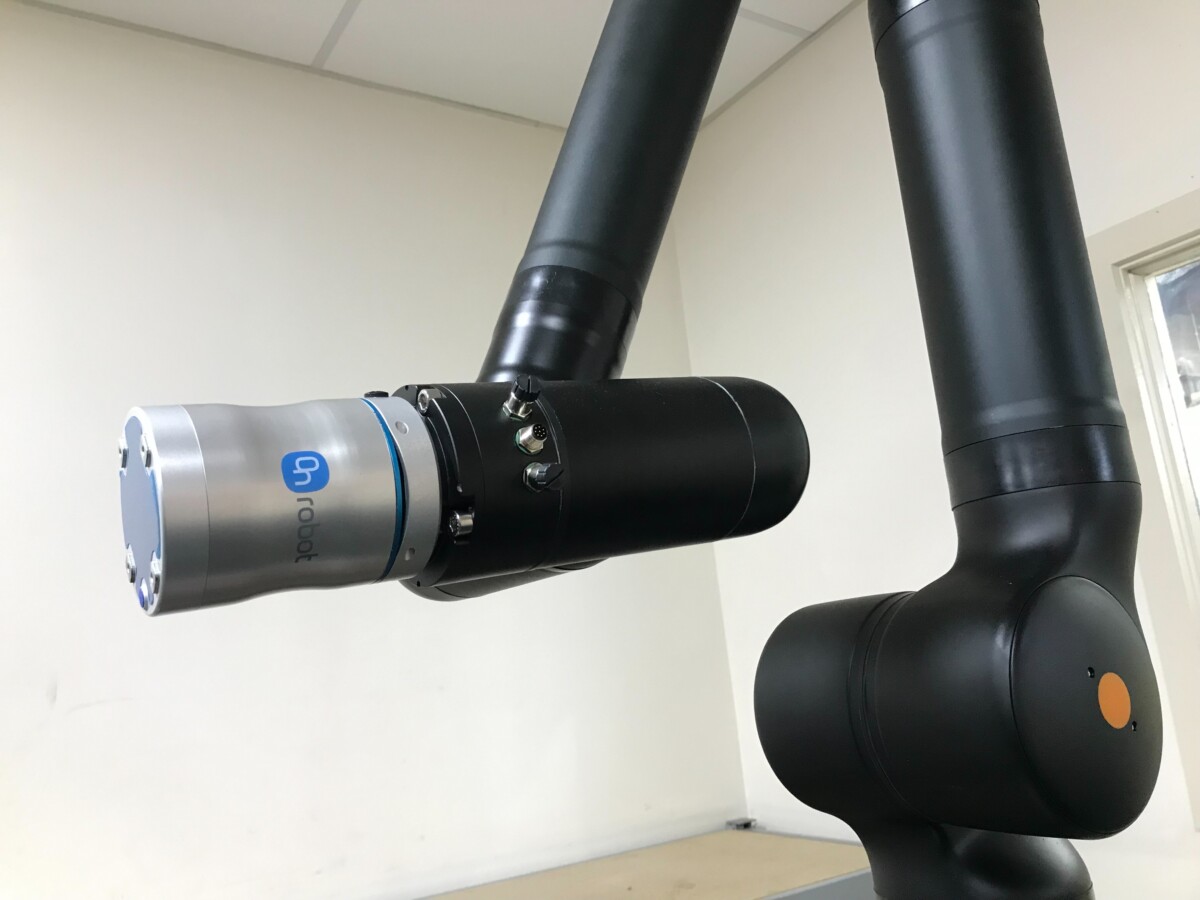

- Already available Cbuns for OnRobot, Robotiq, Pickit, Sick2d and more
- Realtime capable
- Access to robot APIs
- CbunX framework for the UI dynamic content (new)
- Custom Cbun development possibilities (SDK, documentation)
