View Brochure

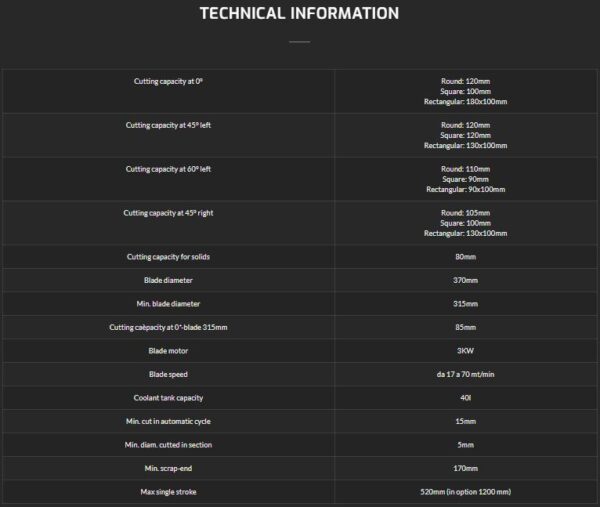

Specifications

Make

IMET

Model

SIRIO 370 AF-NC

Description

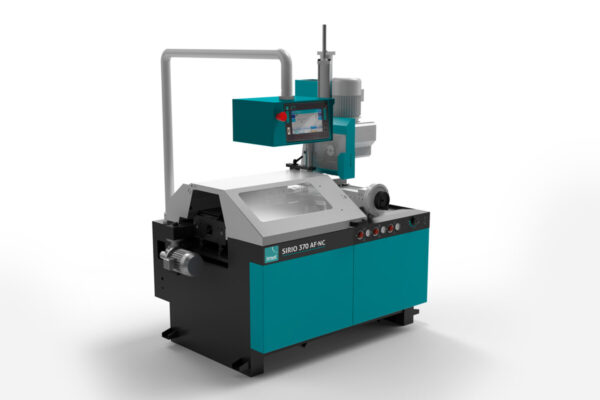

IMET – SIRIO 370 AF-NC automatic vertical saw

Heavy duty automatic vertical saw

SIRIO 370 AF-NC

SIRIO 370 AF-NC is is the professional automatic vertical miter saw with numerical control, suitable for cutting pipes, profiles and high-strength steels. The semiautomatic cycle machine cuts from 0 ° to 45 ° right while in automatic cycle cuts from 0 ° to 60 ° to the left.

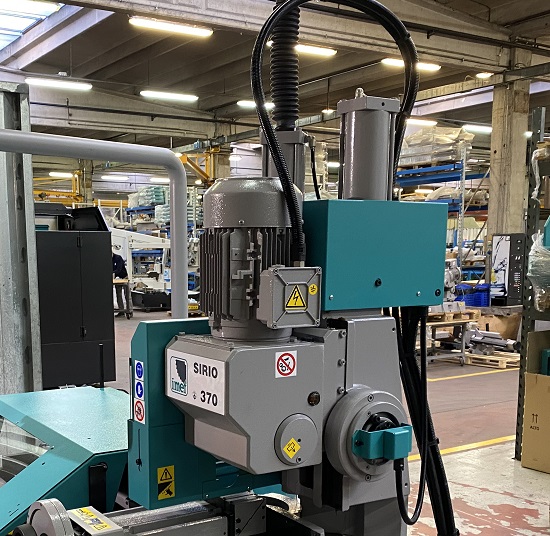

Rigid vertical structure

The SIRIO models have high structural stability to reduce vibrations and movements of the miter saw ice ze di when cutting. The rigid vertical structure is in cast iron with a large surface of contact between the machine head and the structure to ensure even more solidity when in use .

SIRIO 370 AF-NC

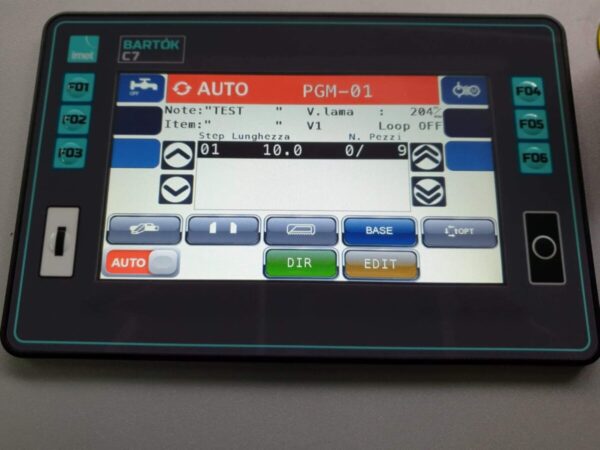

Control panel

SIRIO 370 AF-NC is equipped with a touch screen display to control and manage machine operations.acchina. User-friendly and intuitive, it allows you to select and manage each function of the machine: for example it is possible to select the language of use, the blade speed and the automatic advancement management of the material to be cut.

SIRIO 370 AF-NC

Automatic feeding of the material

SIRO 370 AF-NC is equipped with an integrated feed carriage (single stroke 520mm) for automatic advancement of the aterial. The carriage has an electronic motor with encoder for maximum precision of movement and positioning. The feed carriage vice has an opening of 200mm, a single minimum stroke of 4mm and min. scrap end of 170mm.

SIRIO 370 AF-NC

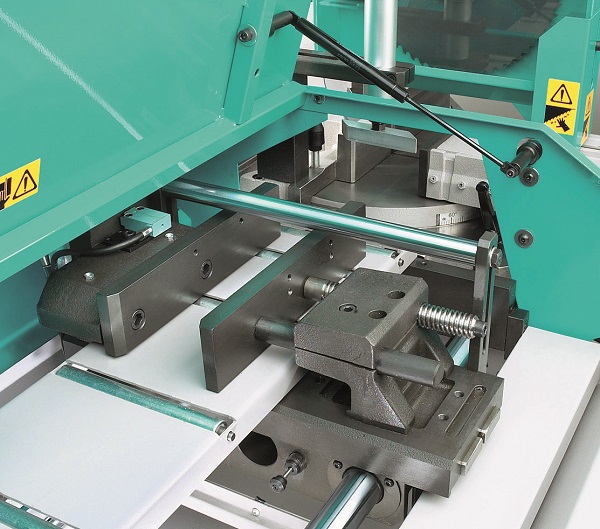

Pneumatic vice

Mounted on adjustable guides, sliding transversely on the work surface with positioning and quick locking.

SIRIO 370 AF-NC

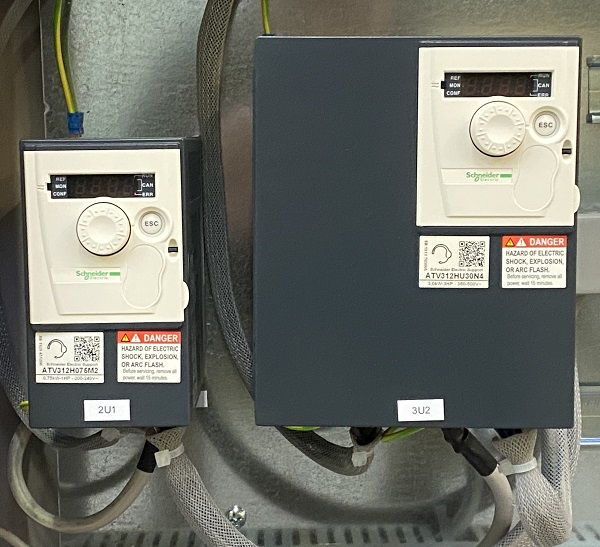

Electronic speed control

SIRIO 370 AF-NC has a variable speed inverter as standard (from 15 to 70 rpm). To increase it it’s possible to order the version from 30 to 140rpm.
