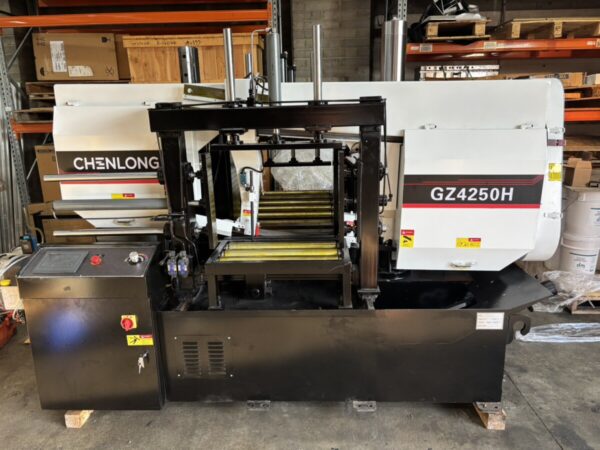

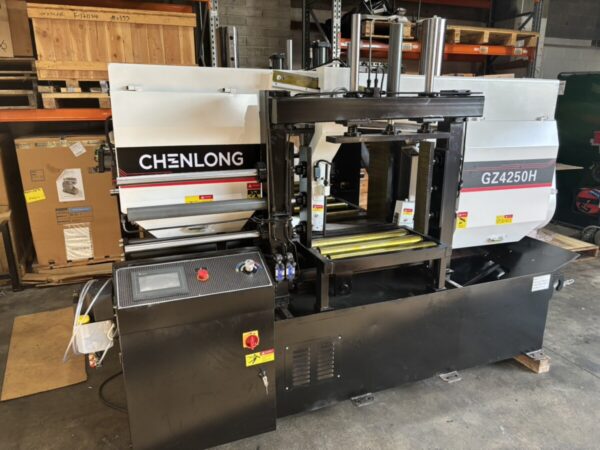

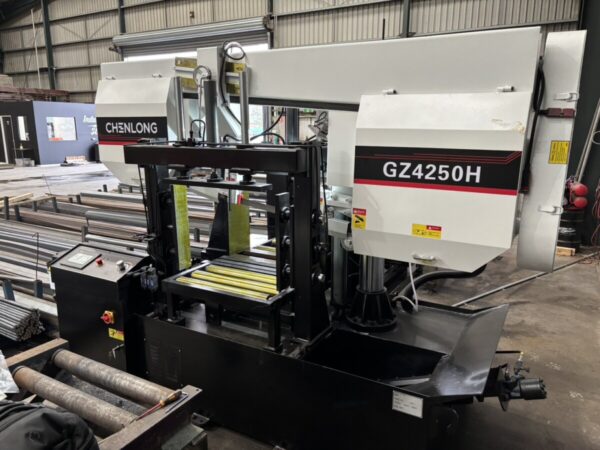

CHENLONG – GZ-4250H – Automatic Band Saw Machine

Specifications

Description

The GZ-4250H Automatic Band Saw Machine is designed for high-volume industrial applications, providing efficient and precise cutting capabilities. This machine is ideal for fabrication workshops, steel processors, and manufacturing facilities.

Key Features

• Fully Automatic Horizontal Band Saw: Automates the cutting cycle, reducing operator involvement and labour costs.
• Large Cutting Capacity: Handles up to 500mm round or 500 × 500mm square materials, ideal for heavy-duty fabrication.
• Bundle Cutting Design: Efficiently cuts multiple pipes or profiles in a single operation, reducing processing time.

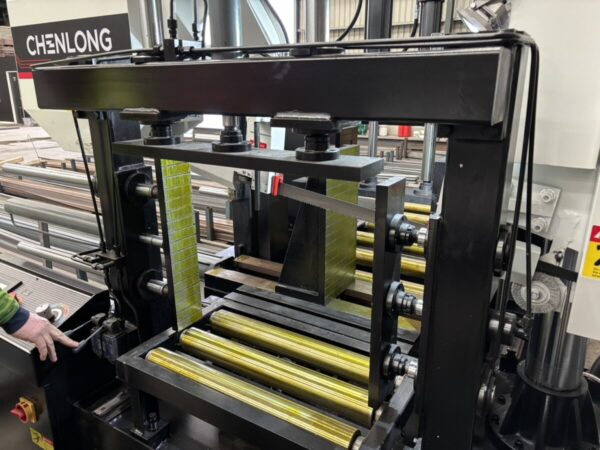

• Hydraulic Bundle Clamping Device: Provides secure clamping for improved cutting accuracy and safety.
• Four Blade Speeds: Offers speeds of 40, 55, 70, and 90 m/min to adapt to different materials.
• Precision Hydraulic Work Vise: Ensures consistent clamping pressure for accurate cuts.
• Additional Hydraulic front clamping for pack cutting
• Carbide & Bearing Blade Guides: Improves blade stability and extends service life.
• Wire Brush Blade Cleaning System: Automatically removes chips to improve cutting efficiency.
• Flood Coolant System: Reduces blade heat and improves surface finish.
• 5.5kW Heavy-Duty Main Motor: Provides the power needed for continuous industrial cutting.
• NC Control System: Allows simple programming for repeat jobs, improving consistency.
• Narrow Kerf Cutting: Minimises material waste and reduces operating costs.
• Manual Blade Tension System: Easy to adjust and maintain for reliable performance.
• Includes Bi-metal Blade: Ready for immediate production with a premium quality blade.
• Working Light: Enhances visibility for safer operation.
• Roller Table Included: Facilitates easier loading and unloading of materials.

Technical Specifications

Below are the detailed specifications of the GZ-4250H Semi-Automatic Band Saw Machine:

Ideal Applications

This band saw machine is perfect for a variety of applications, including:

• Structural steel fabrication
• Pipe and tube processing
• Metal service centres
• Manufacturing workshops
• Heavy engineering
• Mining and industrial maintenance
• General fabrication
• Aluminium and stainless steel processing
• Production cutting of bundled materials
